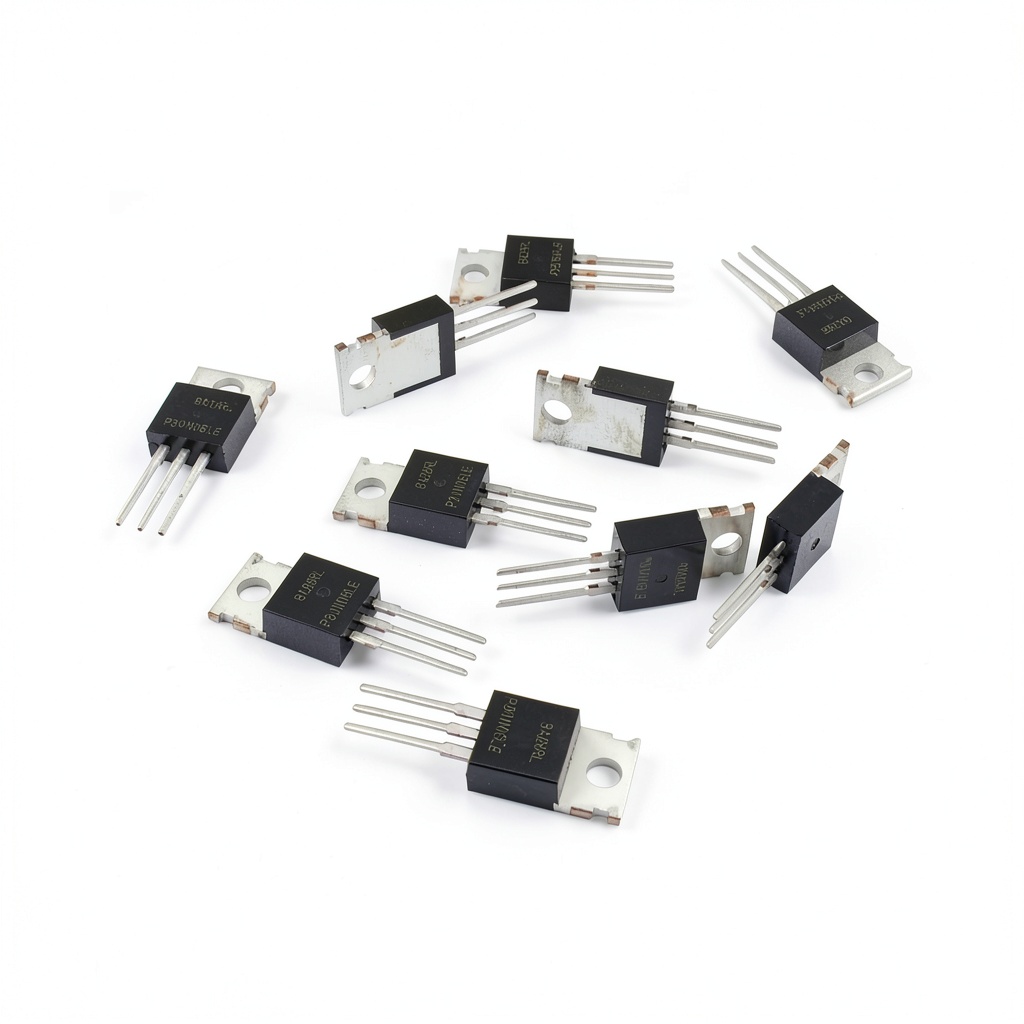

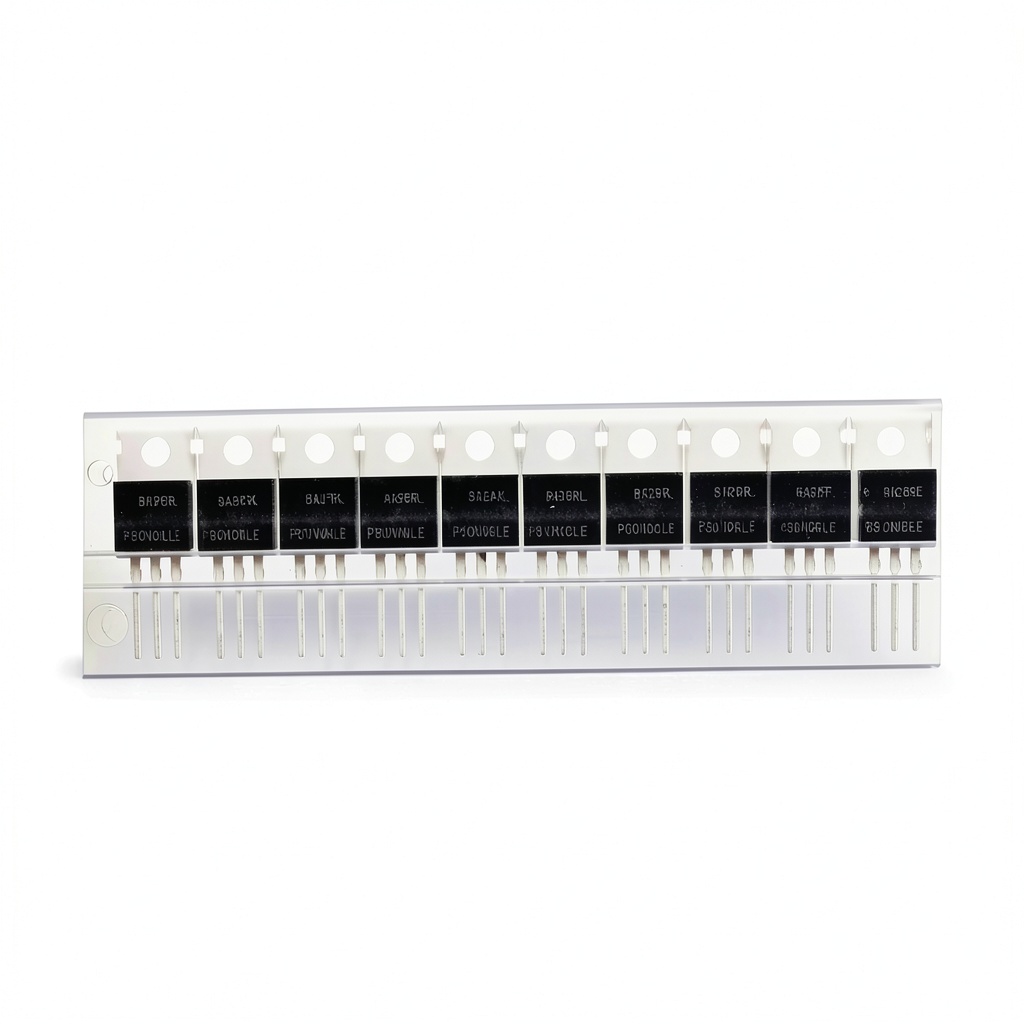

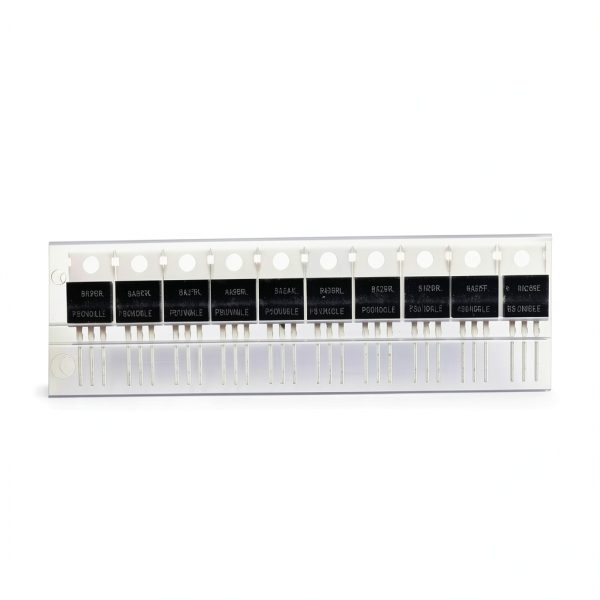

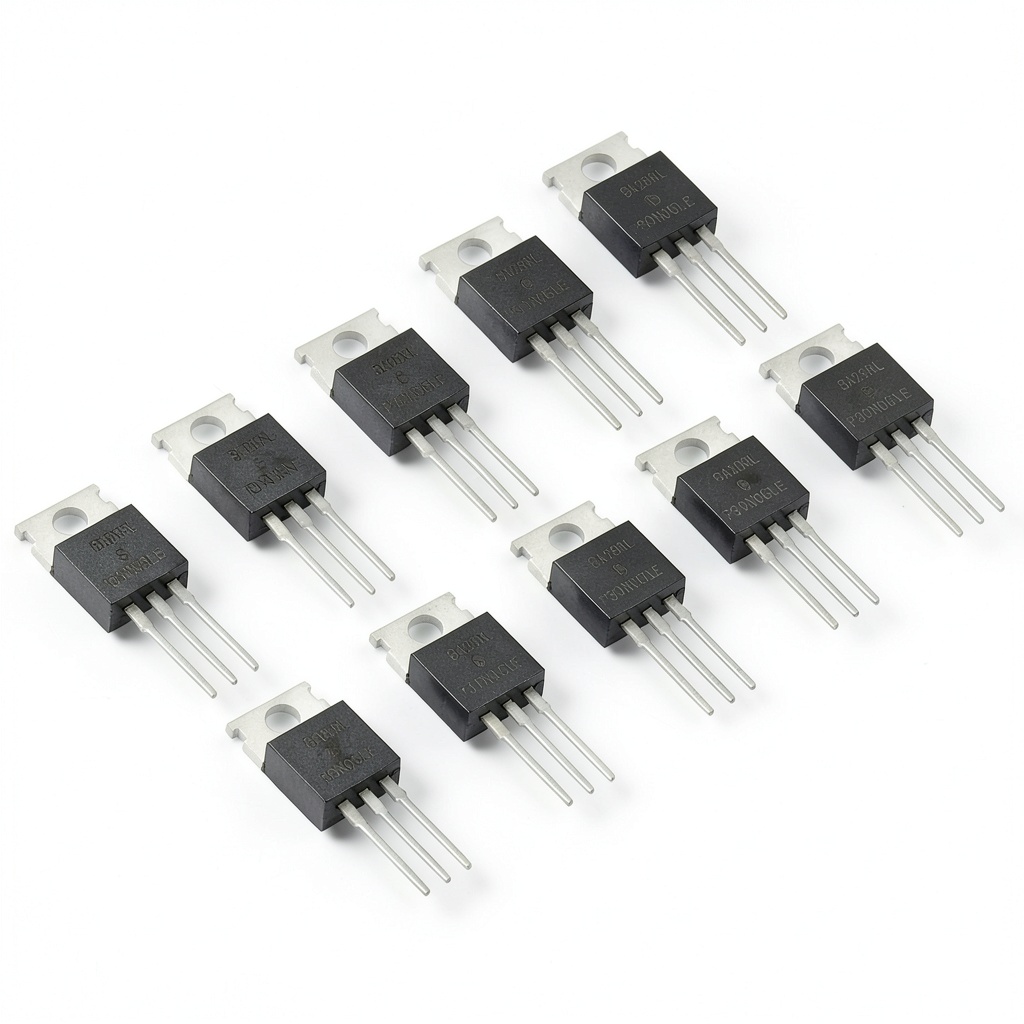

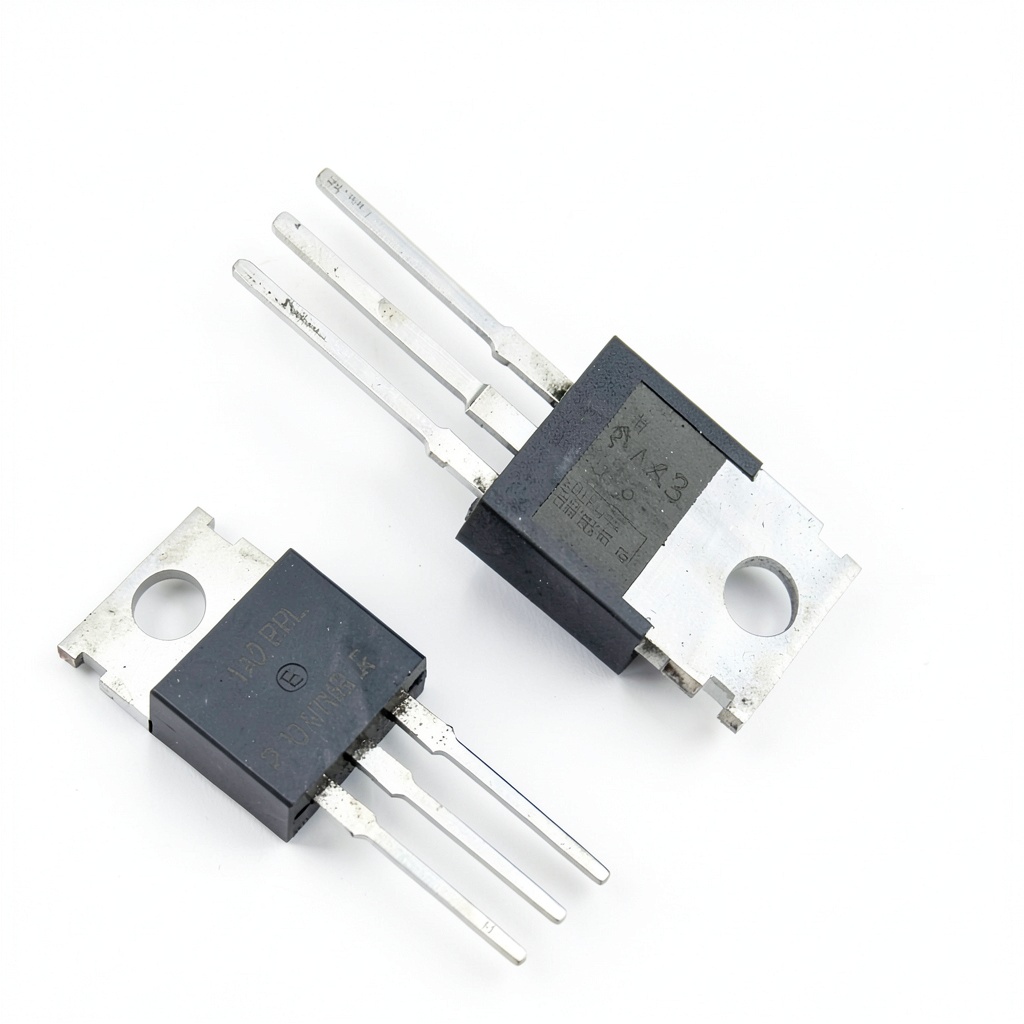

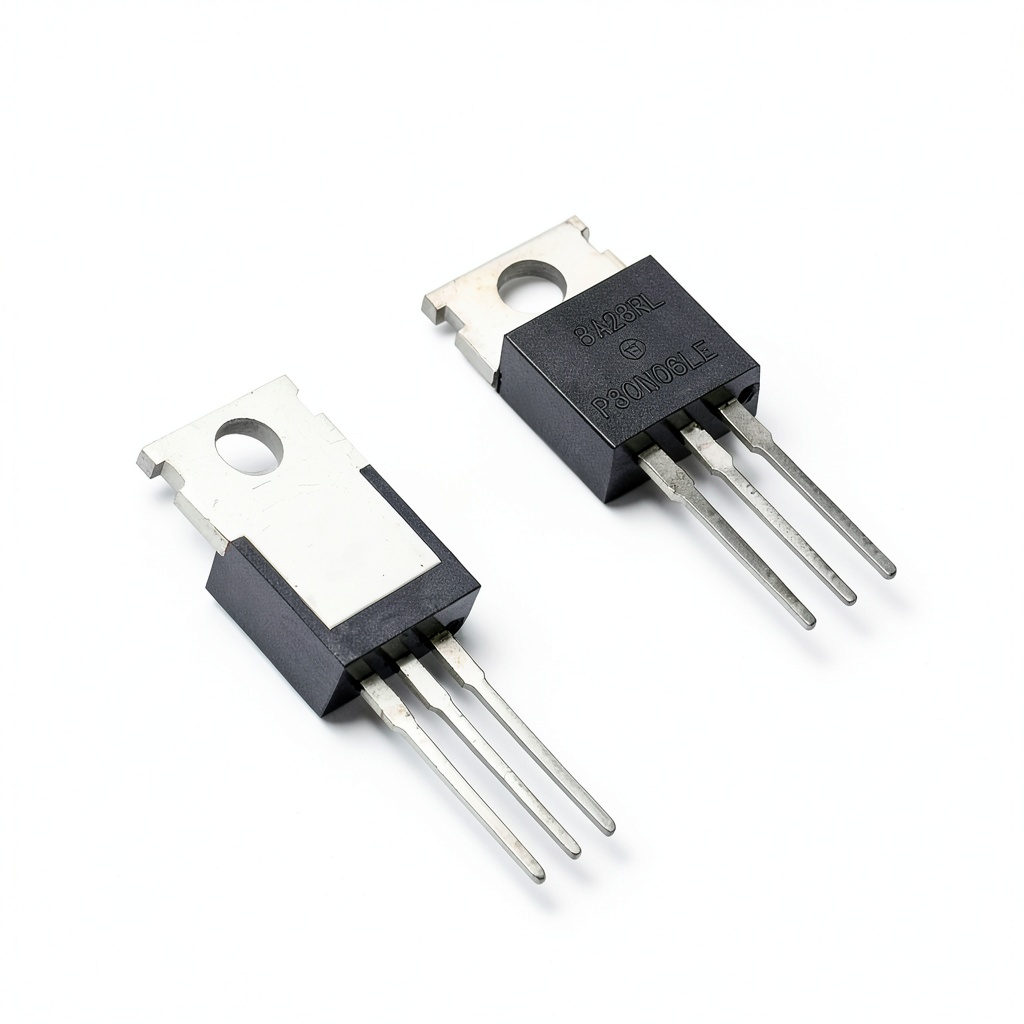

10Pcs Luckkyme RFP30N06LE 30A 60V N-Channel Power Mosfet TO-220 ESD Rated for Arduino

Description

Product Overview

The Luckkyme RFP30N06LE is a high‑performance N‑channel power MOSFET designed for demanding electronic applications. Built in a robust TO‑220 package, this device can continuously conduct 30 amps at a voltage rating of 60 volts, making it suitable for a wide range of power conversion and switching tasks. Its on‑resistance of just 0.047 Ω ensures minimal conduction loss, which translates into higher efficiency and lower heat generation in the final design.

One of the standout characteristics of the RFP30N06LE is its strong electrostatic discharge (ESD) protection. With a 2 kV ESD rating, the MOSFET can survive accidental static discharge events that might otherwise damage sensitive circuitry. Additionally, the device is avalanche rated, providing extra resilience against voltage spikes that can occur during rapid switching or inductive load discharge. These protective features make the component a reliable choice for both hobbyist projects and professional designs where durability is essential.

From a manufacturing perspective, Luckkyme employs a special process technology that enhances the uniformity and stability of the transistor’s performance across large production batches. This consistency is reflected in the low variation of key parameters such as threshold voltage and transconductance, ensuring that each unit behaves predictably when integrated into a system. The MOSFET’s logic‑level gate drive requirement further simplifies interfacing with low‑voltage microcontrollers like the Arduino, allowing designers to achieve fast turn‑on and turn‑off times without the need for complex driver circuits.

Physical dimensions of the TO‑220 package measure approximately 6.97 × 4.21 × 0.28 inches, weighing just 1.13 ounces, which provides a compact footprint for space‑constrained applications. The component is not discontinued, and it has been available since May 2018, gaining a solid reputation reflected in a 4.7‑star rating from 48 customer reviews. Its best‑seller rank of #67 in MOSFET Transistors highlights its popularity among engineers seeking a dependable, high‑current switching solution.

Usage

The RFP30N06LE excels in environments where rapid, hard switching is required. Typical use cases include DC‑DC converters, motor driver circuits, and uninterruptible power supply (UPS) modules. Its ability to handle high current while maintaining low on‑resistance makes it ideal for reducing power loss in high‑frequency switching regulators, where efficiency is paramount.

For hobbyists and makers, the MOSFET pairs seamlessly with Arduino boards and other 5 V logic platforms. The logic‑level gate threshold means the device can be driven directly from the microcontroller’s output pins, eliminating the need for additional gate driver ICs. This simplifies circuit design and reduces overall component count, which is especially valuable in prototype builds and educational kits.

In industrial settings, the RFP30N06LE can be employed in power distribution panels, automotive lighting control, and renewable energy inverters. Its robust ESD protection safeguards against the harsh electrical environments often encountered in automotive and outdoor applications. Moreover, the MOSFET’s avalanche capability ensures reliable operation when dealing with inductive loads such as solenoids, relays, and stepper motors, where voltage transients are common.

When integrating the device into a PCB layout, designers should pay attention to proper heat sinking due to the power dissipation that can occur at high currents. The TO‑220 package includes a metal tab that can be attached to a heatsink using thermal paste or an insulating washer, providing effective thermal management. Additionally, short, wide traces for the source and drain connections help minimize parasitic resistance and inductance, further enhancing switching performance.

Why Choose Us

Choosing the Luckkyme RFP30N06LE means selecting a component that combines rigorous quality control with advanced semiconductor technology. Each MOSFET undergoes comprehensive testing for parameters such as RDS(on), threshold voltage, and leakage current, ensuring that the product meets the specifications advertised. This level of scrutiny reduces the risk of field failures and contributes to longer system lifetimes.

Luckkyme’s commitment to customer satisfaction extends beyond the product itself. Buyers receive responsive technical support from engineers who can assist with circuit design, thermal analysis, and troubleshooting. Whether you are a seasoned professional or a newcomer to electronics, the support team is ready to provide guidance that helps you get the most out of the MOSFET.

In addition to technical assistance, the company offers a straightforward return policy and warranty coverage that protects your investment. Should a unit arrive defective, the replacement process is swift, minimizing downtime for your projects. This after‑sales service underscores Luckkyme’s confidence in the durability and performance of the RFP30N06LE.

Environmental responsibility is also a priority. The manufacturing process adheres to RoHS standards, limiting the use of hazardous substances and ensuring that the component is safe for use in a variety of applications, including those with strict regulatory requirements.

Key Features

• Handles up to 30A at 60V with low 0.047 Ω on‑resistance for high efficiency.
• 2 kV ESD protection and avalanche rating protect against voltage spikes and static discharge.
• Logic‑level gate drive compatible with Arduino and other 5 V microcontrollers.
• Robust TO‑220 package with easy heat‑sink attachment for effective thermal management.
• Comprehensive technical support and warranty ensure reliable after‑sales service.

FAQ

What is the maximum switching frequency for this MOSFET?

The RFP30N06LE can operate efficiently at frequencies up to several hundred kilohertz, depending on the gate drive strength and thermal conditions. For typical Arduino‑driven applications, frequencies between 100 kHz and 200 kHz provide a good balance between performance and heat generation.

Can I use this MOSFET in a high‑current motor driver circuit?

Yes. Its 30 A continuous current rating and low on‑resistance make it well suited for driving DC motors and stepper motors. Ensure that adequate heat sinking is provided and that the gate drive voltage meets the logic‑level requirements for fast switching.

Is the device protected against reverse polarity connections?

While the MOSFET itself does not include built‑in reverse polarity protection, its high ESD rating helps tolerate accidental voltage reversals for short durations. For critical applications, adding a series diode or a dedicated protection circuit is recommended.

How does the avalanche rating benefit my circuit?

The avalanche rating indicates the MOSFET’s ability to safely absorb energy from voltage spikes without damage. In inductive load scenarios, such as when switching relays or solenoids, the avalanche capability prevents catastrophic failure by clamping transient voltages within safe limits.

What packaging options are available for bulk purchases?

The standard offering is a 10‑piece pack in TO‑220 packages. For larger volume orders, Luckkyme can provide bulk packaging options and customized logistics to meet the needs of OEMs and large‑scale manufacturers.
