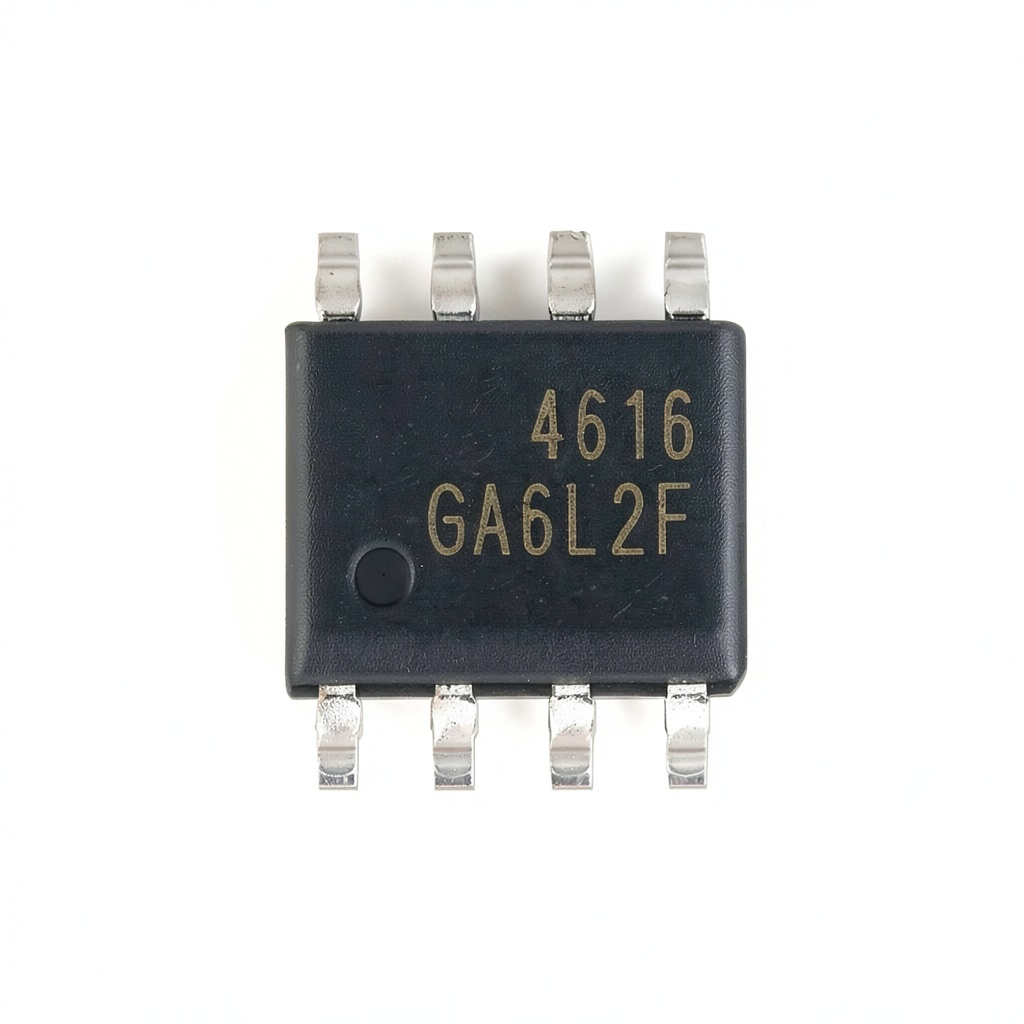

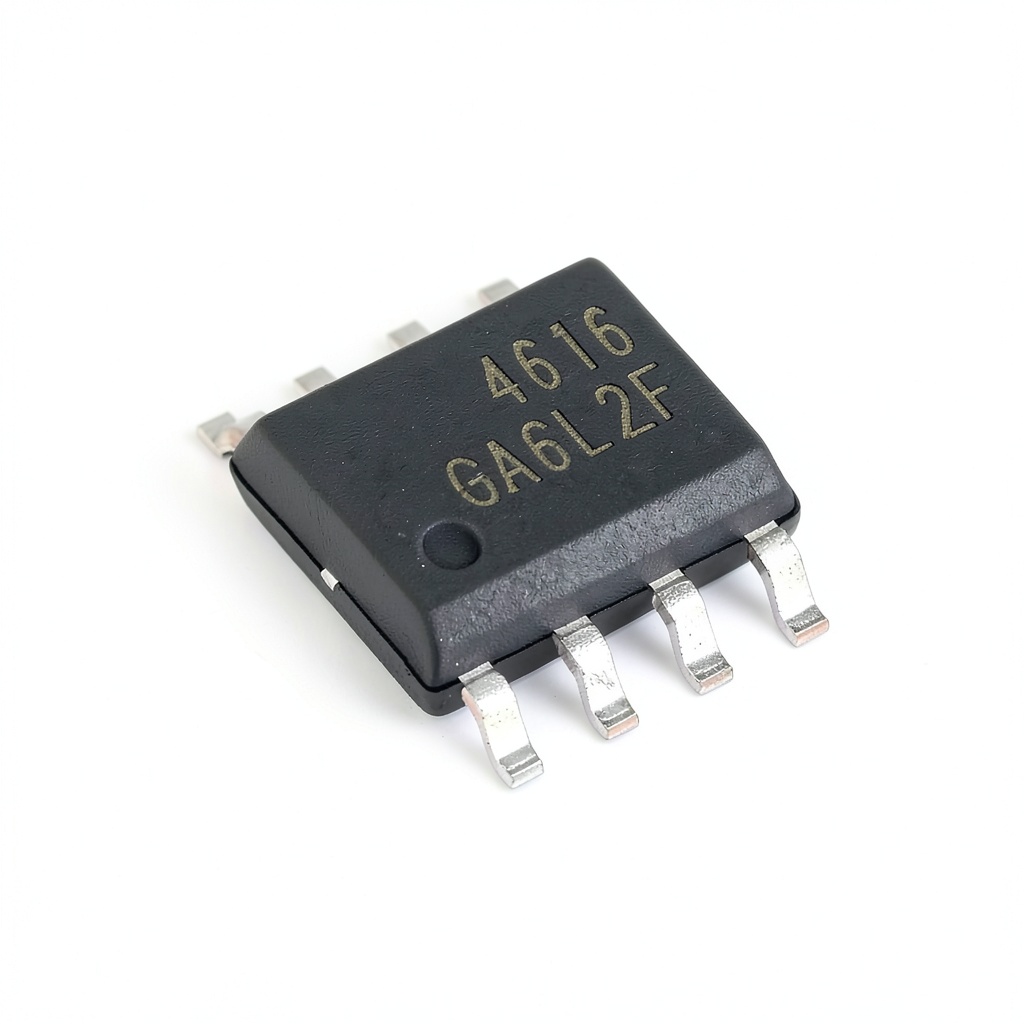

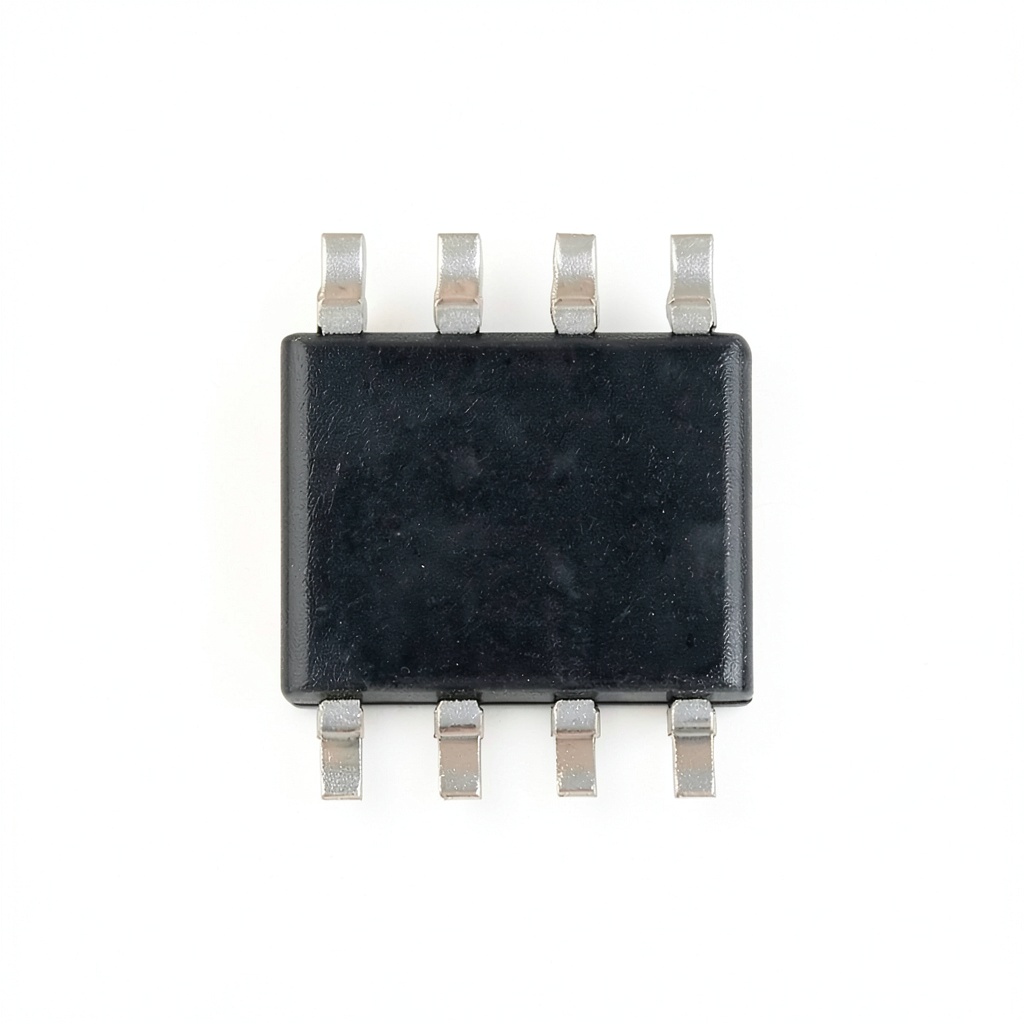

SMD MOSFET AO4616L Dual Channel 30V/-30V 8A/-7A by CNCZoo SOIC-8

Description

Product Overview

The AO4616L is a precision‑engineered SMD MOSFET designed for demanding industrial and scientific applications. Packaged in a standard SOIC‑8 case, each device features a complementary N‑channel and P‑channel pair that share a common substrate, enabling bidirectional current flow and simplifying circuit design. With a maximum drain‑source voltage of 30 V for both polarities and continuous current capabilities of 8 A for the N‑channel and 7 A for the P‑channel, the AO4616L delivers robust performance while maintaining low on‑resistance and fast switching speeds. The device is fabricated using a silicon‑on‑insulator process that reduces parasitic capacitance, improves thermal stability, and ensures consistent electrical characteristics across the entire lot of 100 pieces. CNCZoo, the manufacturer, has a reputation for stringent quality control, and each MOSFET undergoes thorough testing for leakage, threshold voltage, and switching behavior before being sealed in anti‑static packaging. This makes the AO4616L an excellent choice for power converters, motor drivers, LED lighting, and any application that requires reliable dual‑channel operation in a compact footprint.

Usage

Engineers and system designers can integrate the AO4616L into a wide range of environments where space is at a premium and performance cannot be compromised. Typical use cases include DC‑DC buck and boost converters, H‑bridge motor driver circuits, synchronous rectifiers in power supplies, and precision analog switches in instrumentation equipment. The dual N‑P architecture allows designers to implement push‑pull configurations without the need for additional external transistors, reducing board space and component count. Because the MOSFETs are rated for 30 V, they are well suited for low‑to‑medium voltage domains such as automotive auxiliary power, renewable energy inverters, and industrial control panels. The 8 A current rating supports moderate power levels, enabling efficient drive of small to medium sized brushless DC motors, solenoids, and high‑current LED arrays. The SOIC‑8 package is compatible with standard automated pick‑and‑place equipment, making the AO4616L a practical choice for high‑volume manufacturing as well as prototype development.

Why Choose Us

CNCZoo stands behind every MOSFET with a commitment to durability, consistency, and customer satisfaction. Our manufacturing process incorporates advanced wafer‑level testing and post‑fabrication burn‑in to guarantee that each AO4616L meets the specified electrical parameters across the full temperature range. The dual‑channel design reduces the need for external matching components, which not only simplifies the schematic but also improves overall system reliability by minimizing the number of solder joints. In addition, CNCZoo provides comprehensive technical support, including design guidelines, reference schematics, and rapid response to engineering inquiries. Our after‑sales service includes a flexible return policy and the option for custom packaging or labeling to meet specific project requirements. By choosing the AO4616L, customers benefit from a product that combines high performance, ease of integration, and the backing of a manufacturer that values long‑term partnership.

Key Features

• Dual N‑P channel architecture simplifies circuit design and reduces component count.
• 30 V voltage rating and 8 A continuous current provide robust power handling for industrial applications.
• Low on‑resistance and fast switching minimize energy loss and improve efficiency.
• Compact SOIC‑8 package compatible with automated assembly lines for high‑volume production.
• Comprehensive technical support and flexible after‑sales service ensure successful integration.

FAQ

What is the voltage rating of the AO4616L MOSFET?

The AO4616L is rated for a maximum drain‑source voltage of 30 V for both the N‑channel and the P‑channel, making it suitable for low‑to‑medium voltage power conversion tasks.

Can the AO4616L be used in motor driver circuits?

Yes, the dual N‑P configuration and 8 A current capability make the AO4616L ideal for driving small to medium brushless DC motors, stepper motors, and other electromechanical loads in industrial control systems.

Is the SOIC‑8 package compatible with standard pick‑and‑place equipment?

The SOIC‑8 footprint follows industry‑standard dimensions, allowing seamless integration with most automated placement machines and simplifying PCB layout for high‑density designs.

What kind of technical support does CNCZoo provide?

CNCZoo offers detailed datasheets, application notes, reference schematics, and direct engineering assistance to help customers optimize the AO4616L in their specific designs, along with a responsive after‑sales service for any issues that may arise.

How many units are included in the package?

Each order contains 100 individually packaged AO4616L MOSFETs, ensuring you have sufficient inventory for both development prototypes and production runs.
