DC Motor Speed Controller EPLZON PWM Adjustable 0-20kHz 15A 400W 10pcs

Description

Product Overview

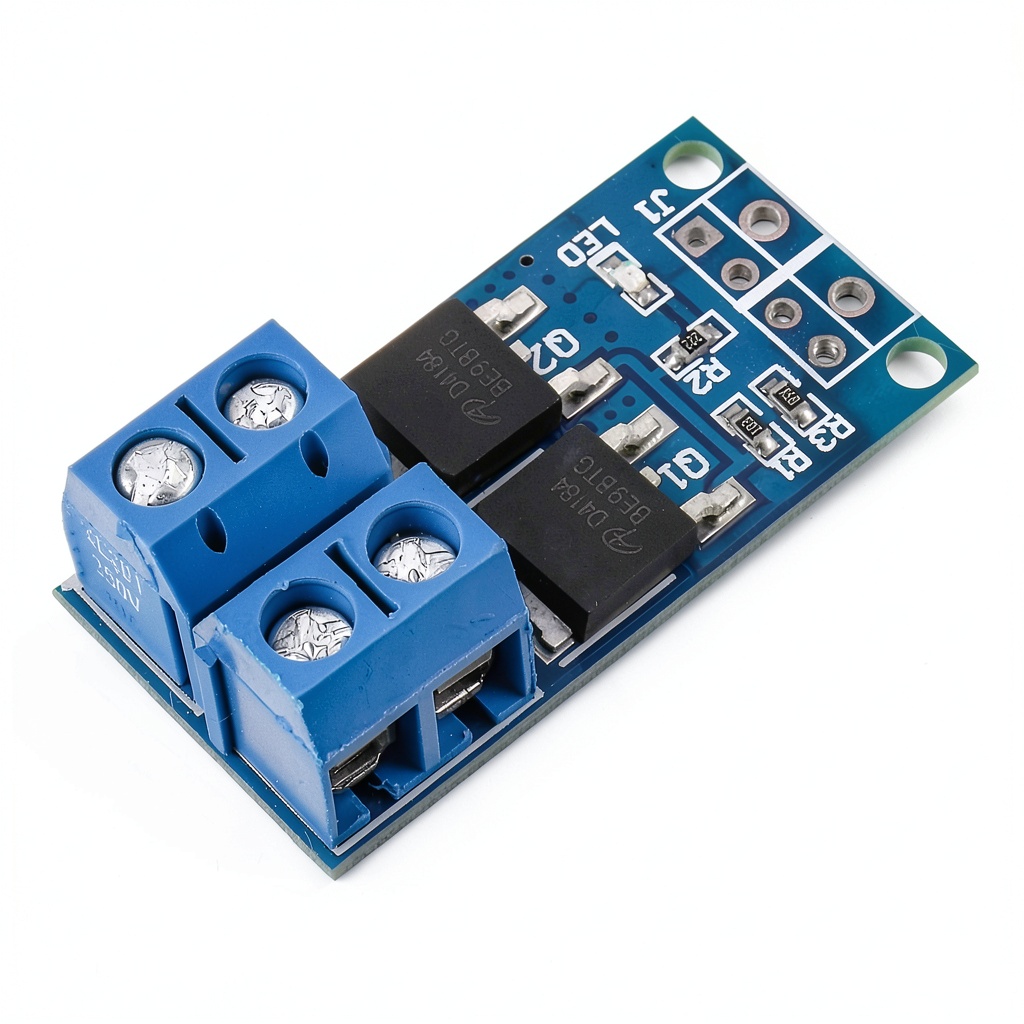

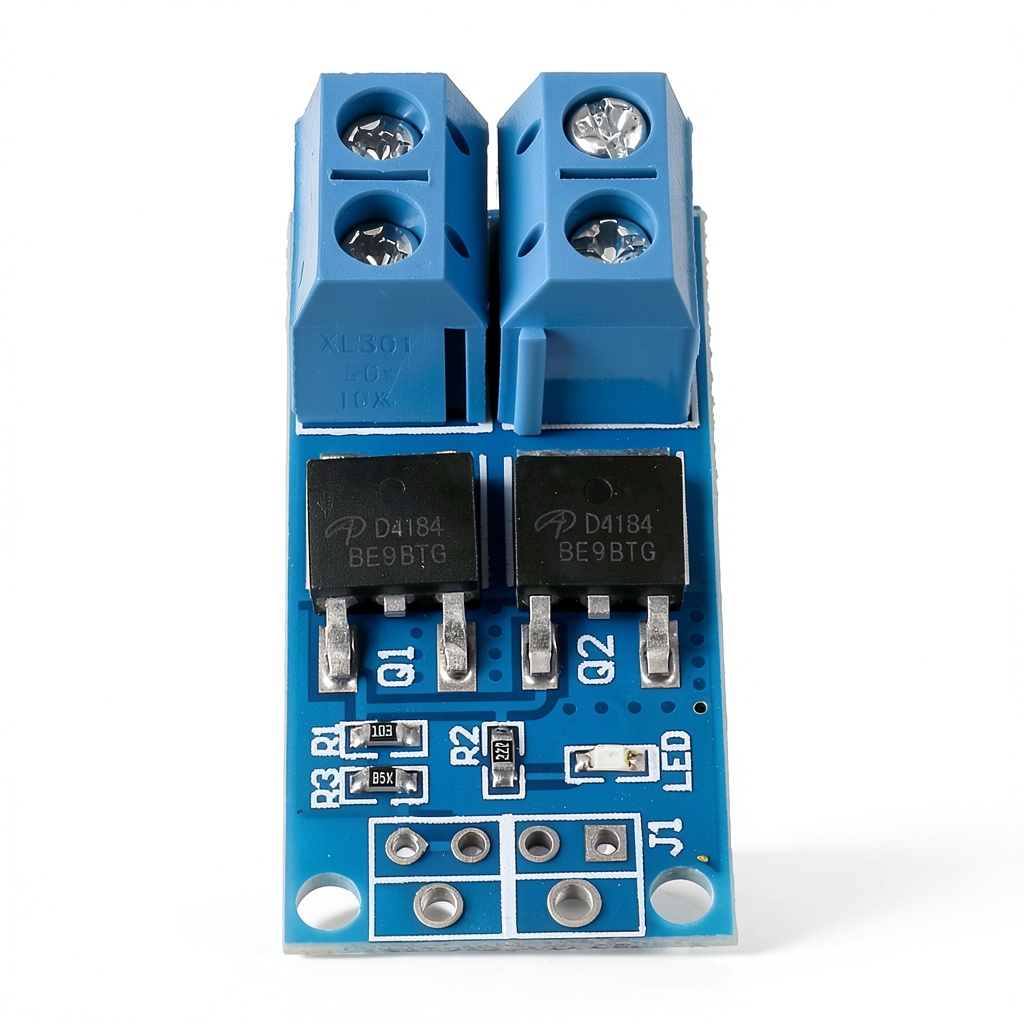

The EPLZON DC Motor Speed Controller is engineered to provide reliable and precise speed regulation for a broad range of DC-powered equipment. Built around a high‑performance dual MOSFET architecture, the module delivers a continuous current of 15 A with a peak capability of 30 A, translating to a maximum power handling of 400 W. This robust power capacity enables the controller to manage demanding loads such as industrial motors, high‑intensity LED arrays, micro‑pumps, and solenoid valves without overheating.

Operating voltage spans from 5 V to 36 V DC, giving the device flexibility to adapt to various power supplies and battery configurations. The controller accepts a digital PWM signal ranging from 0 Hz up to 20 kHz, allowing fine‑grained speed and brightness adjustments. Its input trigger level accepts 3.3 V to 20 V logic, making it compatible with common microcontroller I/O pins, PLC interfaces, and dedicated PWM generators.

Physical dimensions are compact at 1.34 × 0.7 × 0.5 inch (3.4 × 1.7 × 1.2 cm) and the unit weighs only 0.01 oz, facilitating easy integration into tight spaces. The enclosure is constructed from high‑temperature resistant polymer, providing both mechanical protection and effective heat dissipation. A built‑in thermal management system, featuring copper heat‑sinks and optimized PCB layout, ensures stable operation across the full temperature range of –40 °C to 85 °C.

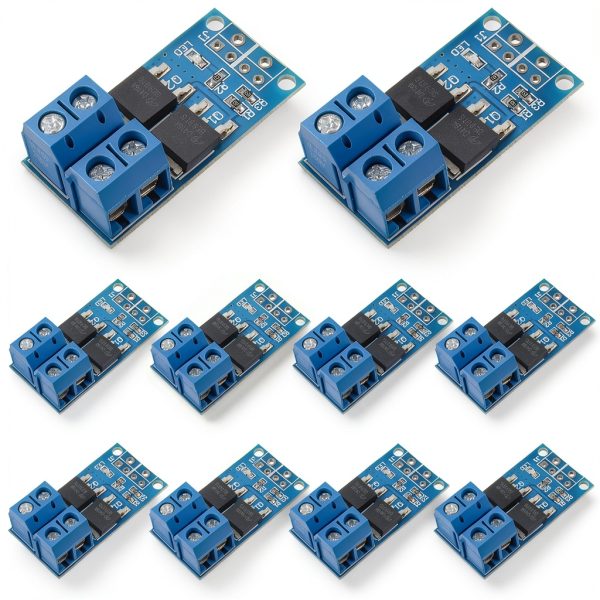

Each package includes ten identical modules, allowing manufacturers and system integrators to scale their solutions efficiently. The product carries the model identifier EP‑SWITCH‑15A and complies with industry standards for MOSFET‑based motor controllers, reflected in its ranking among top MOSFET transistor products on major e‑commerce platforms.

Designed for industrial and scientific applications, the controller meets rigorous quality criteria, offering a reliable solution for automation, robotics, lighting control, and fluid handling systems. Its straightforward wiring diagram and clear labeling simplify installation, while the robust component selection guarantees long‑term durability even under continuous heavy load conditions.

Usage

In manufacturing environments, the controller can be employed to regulate conveyor belt motors, ensuring smooth acceleration and deceleration while minimizing mechanical stress. Its fast response time and high‑frequency PWM capability make it suitable for precision positioning tasks in CNC machines and robotic arms, where exact speed control is essential.

For lighting applications, the controller enables dimming of high‑power LED fixtures in warehouses, stage lighting rigs, and outdoor signage. By adjusting the PWM duty cycle, users can achieve seamless brightness transitions without flicker, improving energy efficiency and extending LED lifespan.

In fluid handling systems, the module drives micro‑pumps and solenoid valves with accurate flow control, supporting processes such as chemical dosing, water treatment, and laboratory automation. The wide voltage range accommodates both low‑voltage battery‑powered setups and higher‑voltage mains‑derived supplies.

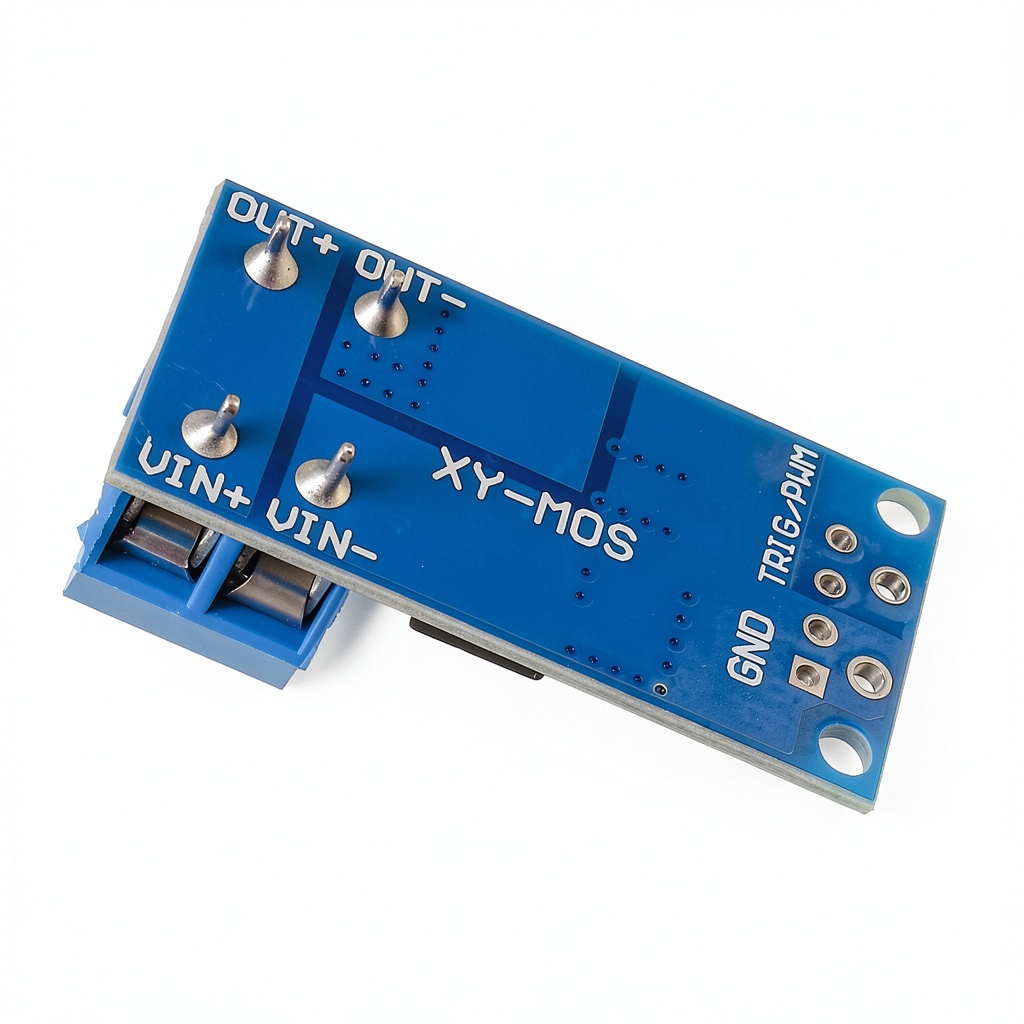

Field technicians and system designers appreciate the controller’s compatibility with standard MCU platforms like Arduino, STM32, and PIC, as well as PLCs from major vendors. The simple three‑wire connection—power, ground, and PWM signal—reduces wiring complexity and accelerates deployment in both prototype and production environments.

Because the controller operates reliably in temperatures from –40 °C to 85 °C, it is suitable for outdoor installations, automotive applications, and harsh industrial settings where temperature fluctuations are common.

Why Choose Us

Choosing the EPLZON motor speed controller means selecting a product backed by rigorous testing and quality assurance processes. Each unit undergoes a comprehensive series of electrical and thermal evaluations to verify performance against the specified 15 A continuous and 30 A peak ratings. This commitment to reliability reduces downtime and maintenance costs for end users.

Our dual MOSFET design reduces internal resistance, resulting in higher efficiency and lower heat generation compared to single‑MOSFET alternatives. The enhanced heat‑dissipating structure prolongs component life, even when operating near maximum power levels for extended periods.

Customer support is a cornerstone of our service philosophy. Buyers receive detailed technical documentation, wiring diagrams, and application notes to facilitate rapid integration. In addition, our engineering team is available to assist with custom firmware development, troubleshooting, and performance optimization, ensuring that the controller meets the specific needs of each project.

Key Features

• Wide input voltage range (5‑36 V) accommodates diverse power sources
• High current capability (15 A continuous, 30 A peak) for demanding loads
• Fast PWM response up to 20 kHz enables precise speed and brightness control
• Robust dual MOSFET design reduces heat and improves efficiency
• Comprehensive technical support and documentation for seamless integration

FAQ

What type of PWM signal does the controller accept?

The controller accepts a standard digital PWM signal with a frequency range from 0 Hz up to 20 kHz. The logic level can be anywhere between 3.3 V and 20 V, making it compatible with most microcontrollers and PLCs.

Can the controller be used with battery‑powered systems?

Yes. Its operating voltage of 5 V to 36 V allows it to work with a variety of battery configurations, including Li‑ion, NiMH, and lead‑acid packs, providing flexibility for portable and off‑grid applications.

How does the controller protect against overheating?

The module incorporates a copper heat‑sink and a thermally optimized PCB layout that dissipates heat efficiently. Additionally, the internal MOSFETs feature built‑in thermal shutdown protection that reduces current if the temperature exceeds safe limits.

Is the controller suitable for controlling LED lighting?

Absolutely. The high‑frequency PWM capability ensures smooth dimming without visible flicker, and the current rating supports high‑power LED arrays commonly used in industrial and commercial lighting.

What warranty and after‑sales service are provided?

Each unit comes with a one‑year limited warranty covering manufacturing defects. Our support team is available to assist with installation, troubleshooting, and any firmware or hardware questions you may have during the warranty period.
